Description

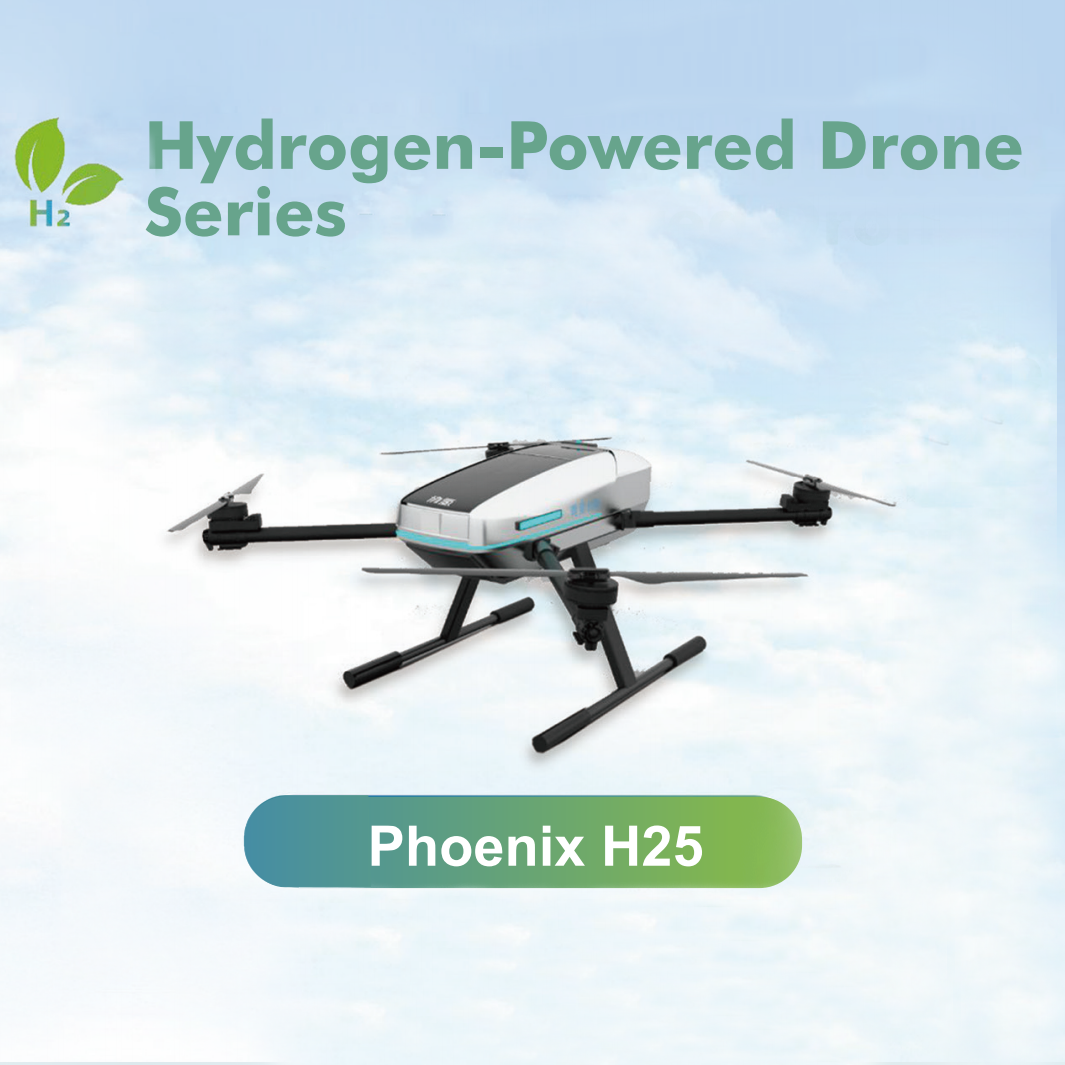

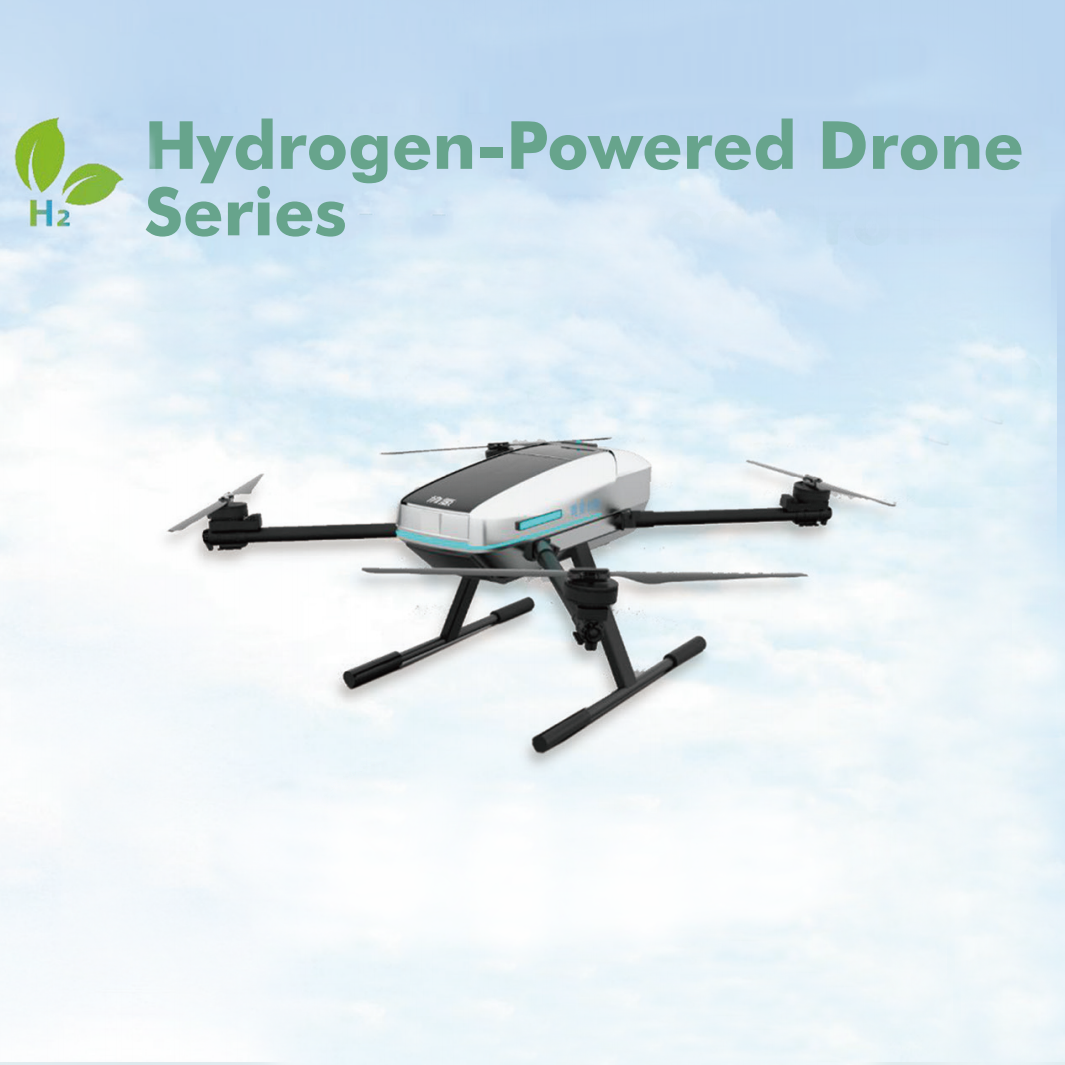

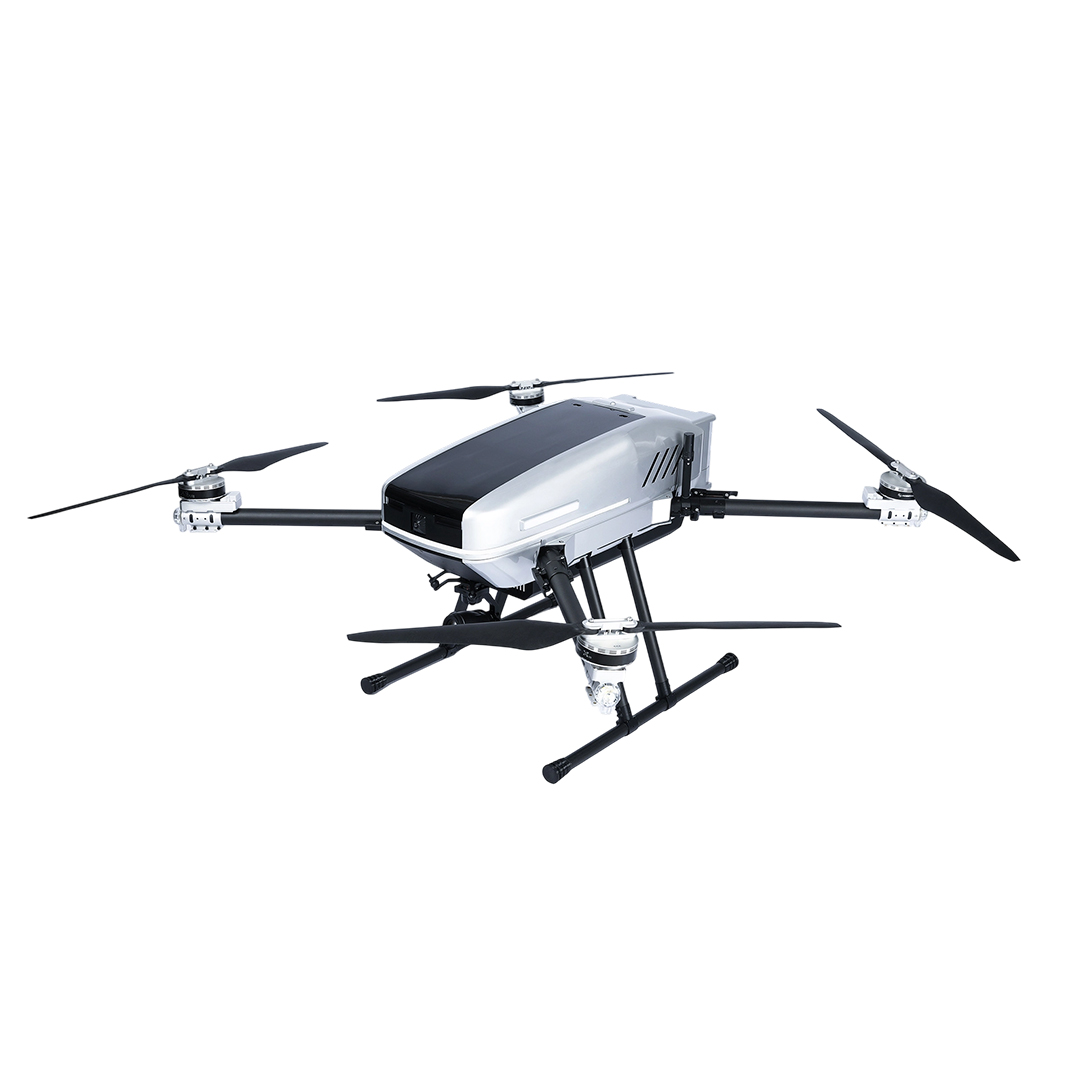

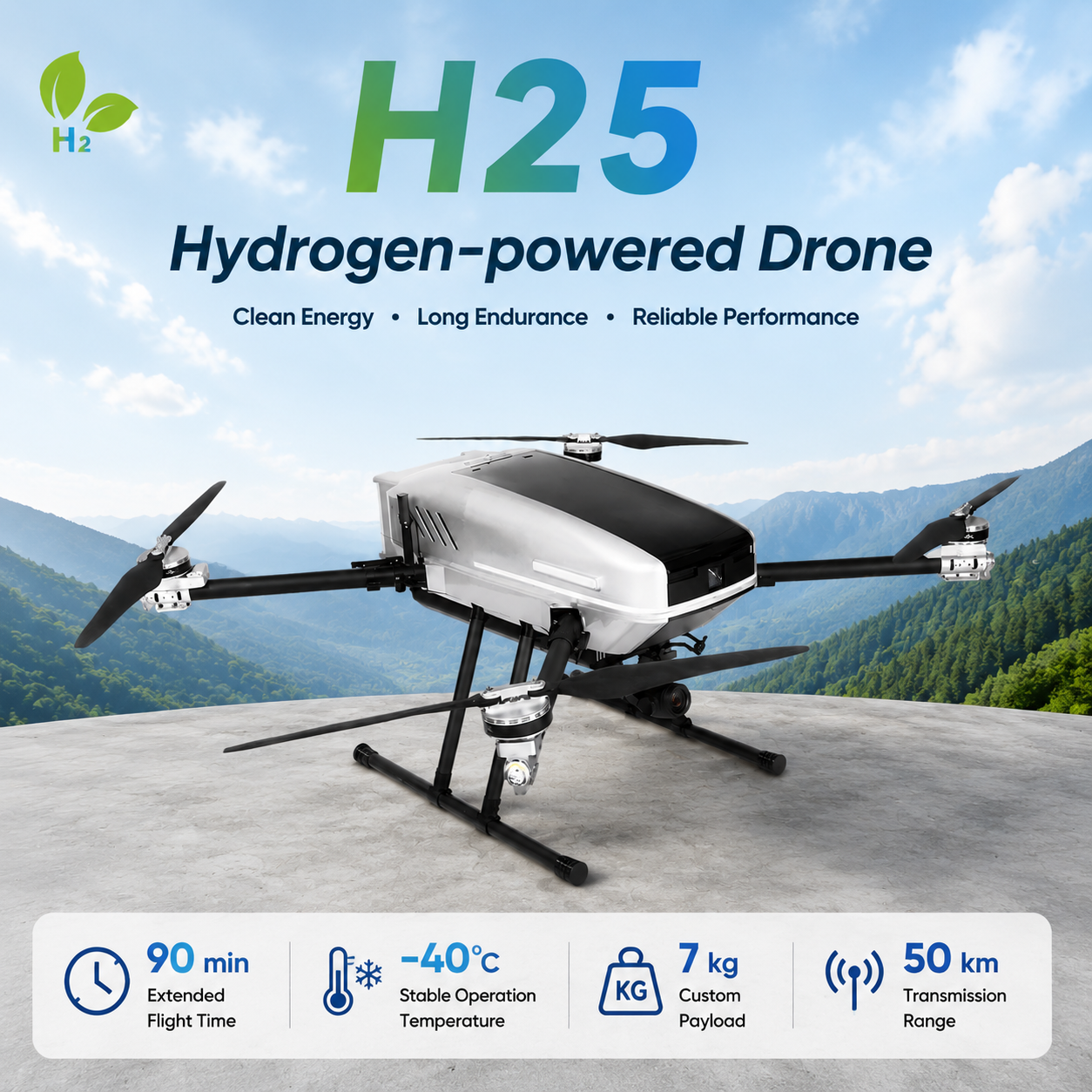

The Qingluan H25 hydrogen-powered drone features an optimized power system with strong integration capabilities, adapting to a variety of mission equipment and sensors to suit diverse application scenarios. The drone also features open data interfaces and communication protocols, facilitating integration and data exchange with other systems. It is widely used in fields such as geographic surveying and mapping, forestry security, wind power inspection, and marine patrols.
Product Parameters
| Category | Parameter |
|---|---|
| Model | Quadcopter |
| Wheelbase | 1640 mm |
| Hydrogen Fuel Cells | 3.6 kW |
| Hydrogen Tanks | 12 L @35MPa |
| Empty Weight | 26 kg |
| Max Payload | 7 kg |
| Flight Time (Empty Load) | 90 min |
| Max Flight Altitude | 3000 m |
| Max Flight Speed | 18 m/s |
| Max Ascent Speed | 3 m/s |
| Max Descent Speed | 2 m/s |
| Wind Resistance | Level 6 |
| Operating Temperature | -40℃ ~ 50℃ |
| Hover Precision (When GNSS is functioning properly) | Horizontal: ±1.5 m; Vertical: ±0.5 m |
| Unfolded Size | 1250 × 1300 × 680 mm (L × W × H) |
| Folded Size | 860 × 660 × 790 mm (L × W × H) |
| Payload Modules | Light hook / Speaker / Communication device / Searchlight, etc. |
