Description
Product Overview

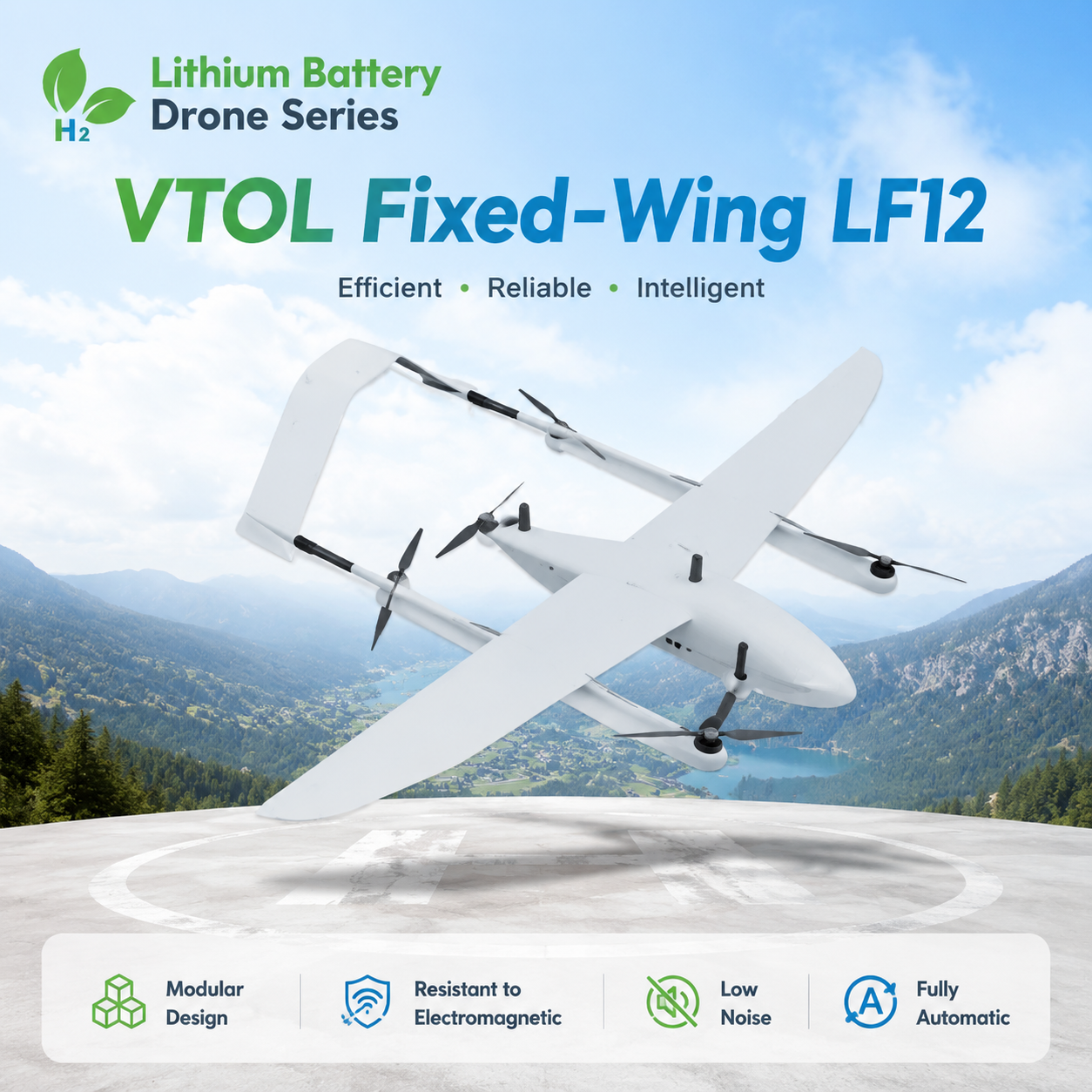

The VTOL LF12 combines vertical takeoff and landing flexibility with the efficiency of fixed-wing flight. Its modular design and fully integrated control system allow for simplified operations with a single button, making it highly user-friendly and manageable by just one operator.
With its superior reliability and enhanced performance, the LF12 is well-suited for demanding missions requiring stability, efficiency, and ease of use.
Application Scenarios
-
Topographic Mapping & Surveying – Acquire precise geospatial data efficiently.
-
Search & Reconnaissance – Ideal for security, defense, and emergency response.
-
Maritime Inspection – Reliable performance in coastal and offshore environments.
-
Power Line & Infrastructure Inspection – Safe and efficient monitoring of critical assets.
Product Parameters
| Category | Parameters |
|---|---|
| Model | VTOL Fixed-Wing |
| Wingspan | 2500 mm |
| Fuselage length | 1450 mm |
| Power source | Lithium Battery |
| Takeoff and landing method | Vertical Takeoff and Landing (VTOL) |
| Maximum takeoff weight | 12 kg |
| Maximum payload | 2 kg |
| Maximum flight time | > 2 h |
| Maximum flight altitude | 3000 m |
| Communication range | 15 km (50 km optional) |
| Flight speed | 65–100 km/h |
| Economical cruise speed | 70–90 km/h |
| Maximum ascent speed | 5 m/s |
| Maximum descent speed | 3 m/s |
| Wind resistance level | Level 6 |
| Operating temperature | -20℃ ~ +50℃ |
| Positioning accuracy (GNSS) | Horizontal: ±1.5 m; Vertical: ±0.5 m |
| Mission payloads | EO or IR Stabilizer / Mapping equipment, etc. |
